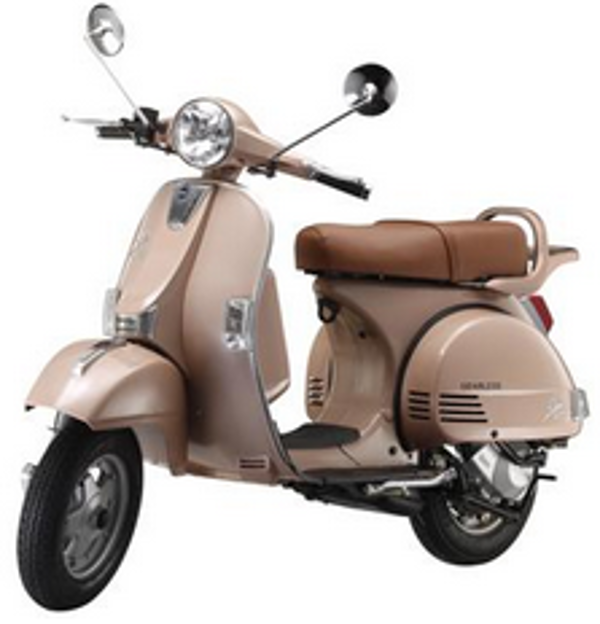

LML Star Euro 150 Disc

₹ 58,000

* Delhi. May vary.

QUICK FACTS & INFORMATION
Body Type	Scooter
Fuel Type	Petrol
Top Speed	90 kmph
Shades	Black Gold, Cipria Red, Eclair Brown, Glicine, Lilac Blue, Pearl White, Young White, Young Black
MILEAGE & TOP SPEED
Mileage	45-55 kmpl (approx.)
ENGINE & GEARBOX
Engine Description	Single cylinder, four stroke, forced air cooled with single overhead cam and two valves
Fuel System	KEIHIN FIE - PB18
Cooling	Air Cooling
Displacement	150.82 cc
Maximum Power	9.3± 0.33 Bhp @ 8000 ± 200 rpm
Number of Cylinders	1
Ignition	Capacitor Discharge Ignition (CDI) Electronic
Compression Ratio	9.0 ± 0.5:1
Bore	61 mm
Stroke	51.9 mm
Spark Plug Model Type	MICO - UHR3CC
Idling Speed	1400 ± 100 rpm
Number of Gears	Automatic
Clutch	Centrifugal
Primary Reduction Ratio	2.57~0.88
Secondary Reduction Ratio	6.82
Final Reduction Ratio	17.53~6.0
Driveline	V -belt drive
BRAKES & TYRES
Front Brake	Disc
Rear Brake	Drum mechanical expanding shoe type
Front Tyre	89x251mm (3.50''x10''), 4 ply rating, interchangeable
Rear Tyre	89x251mm (3.50''x10''), 4 ply rating, interchangeable
Wheel Type	Alloys
Tubeless Tyres
Alloy Wheels
SUSPENSION & CHASSIS
Front Suspension	Hydraulic dampers & Helical springs
Rear Suspension	Hydraulic dampers & Helical springs
Frame	Semi monocoque structure having pressed steel sheet in front and tubular frame in rear, Covered by sheet metal shell assembly

DIMENSIONS & WEIGHT
Overall Length	1760 mm
Overall Width	695 mm
Ground Clearance	160 mm
Seat Height	820 mm
Wheelbase	1260 mm
Kerb/Wet Weight	112 kg
Fuel Tank Capacity	7 litres
INSTRUMENT CONSOLE FEATURES
Speedometer	Analog
Fuel Gauge	Analog
BATTERY & LIGHTING
Pass Light
Battery Type	MF
Capacity	5Ah
Voltage	12V
Head Light	12V, 35W/35W Halogen
Tail Light	12V, 10W/5W {LED}
Turn Signal Light (Front)	12V, 21W
Turn Signal Light (Rear)	12V, 21W
Position Lamp	12V, 5W
COMFORT & CONVENIENCE FEATURES
Electric Start
Pillion Footrest
Step-up Seat/Split Seat
Miscellaneous Information
Steering Column	Pivoted at the front wheel swinging hub
