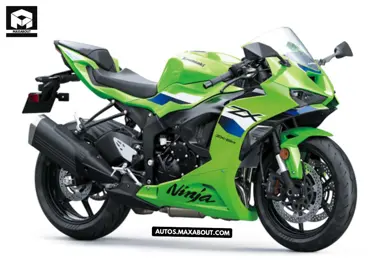

Kawasaki Ninja ZX-6R
Specifications
See full specifications
| Displacement | 636 cc |
| Maximum Power | 130 HP @ 13,500 rpm |
| Maximum Torque | 70.8 Nm @ 11,000 rpm |
| Number of Cylinders | 4 |
| Number of Gears | 6 Speed |
| Seat Height | 830 mm |
| Ground Clearance | 130 mm |
| Kerb/Wet Weight | 196 kg |
| Fuel Tank Capacity | 17 litres |
Kawasaki Ninja ZX-6R: Pros & Cons
Pros
-
Awesome Looks
(590 of 709 agree)
-
Advanced Technology
(496 of 588 agree)
-
Solid Build Quality
(466 of 564 agree)
-
Powerful Engine
(504 of 597 agree)
Cons
-
Delayed Launch
(343 of 520 agree)
More Bikes By Kawasaki
Kawasaki India
QUICK FACTS & SUMMARY | |
| Bike Variant | Kawasaki Ninja ZX-6R |
| Braking System | Anti-lock Braking System |
| Current Status | Available |
| Body Type | Superbike |
| Fuel Type | Petrol |
| Price in India | Kawasaki Ninja ZX-6R is priced at INR 10.50 lakh in India(Ex-Showroom) |
| Shades | Lime Green/Ebony/Metallic Graphite Gray |
| Official Tagline | Set Your Heart Racing |
ENGINE & GEARBOX | |
| Engine Description | 636cc, 4 Cylinder, Liquid Cooling |
| Fuel System | Fuel Injection: Ø38 mm x 4 with Oval Sub-Throttles |
| Cooling | Liquid Cooling |
| Displacement | 636 cc |
| Maximum Power | 130 HP @ 13,500 rpm |
| Maximum Torque | 70.8 Nm @ 11,000 rpm |
| Number of Cylinders | 4 |
| Emission Standard | BS4 |
| Ignition | Digital |
| Lubrication | Forced Lubrication, Wet Sump with Oil Cooler |
| Compression Ratio | 12.9:1 |
| Bore | 67 mm |
| Stroke | 45.1 mm |
| Valve System | DOHC, 16 valves |
| Number of Gears | 6 Speed |
| Gearbox Type | Return |
BRAKES & TYRES | |
| Front Brake | Dual Semi-Floating ø310 mm (x t5 mm) Petal Discs |
| Rear Brake | Single ø220 mm (x t5 mm) Petal Disc |
| ABS | |
| Front Tyre | 120/70ZR17M/C (58W) |
| Rear Tyre | 180/55ZR17M/C (73W) |
| Wheel Type | Alloys |
| Tubeless Tyres | |
| Alloy Wheels | |
SUSPENSION & CHASSIS | |
| Front Suspension | ø41 mm Inverted Fork (SFF-BP) with Rebound and Compression Damping and Spring Preload Adjustability, and Top-Out Springs |
| Rear Suspension | Bottom-Link Uni Trak, Gas-Charged Shock with Piggyback Reservoir, Compression and Rebound Damping and Spring Preload Adjustability |
| Frame | Perimeter, Pressed-Aluminium |
| Front Wheel Travel | 120 mm |
| Rear Wheel Travel | 151 mm |
DIMENSIONS & WEIGHT | |
| Overall Length | 2025 mm |
| Overall Width | 710 mm |
| Overall Height | 1100 mm |
| Ground Clearance | 130 mm |
| Seat Height | 830 mm |
| Wheelbase | 1400 mm |
| Kerb/Wet Weight | 196 kg |
| Fuel Tank Capacity | 17 litres |
INSTRUMENT CONSOLE FEATURES | |
| Speedometer | Digital |
| Tachometer | Analog |
| Trip Meter | Digital |
| Fuel Gauge | Digital |
BATTERY & LIGHTING | |
| Pass Light | |
| Battery Type | Maintenance Free |
| Automatic Headlamp On (AHO) | |
COMFORT & CONVENIENCE FEATURES | |
| Electric Start | |
| Pillion Footrest | |
| Step-up Seat/Split Seat | |
Miscellaneous Information | |
| Lean Angle, Left (deg.) | 27 Degree |
| Lean Angle, Right (deg.) | 27 Degree |
| Rake | 23.5° |
| Trail | 101 mm |
| Steering Angle | 27°(Left) / 27°(Right) |
