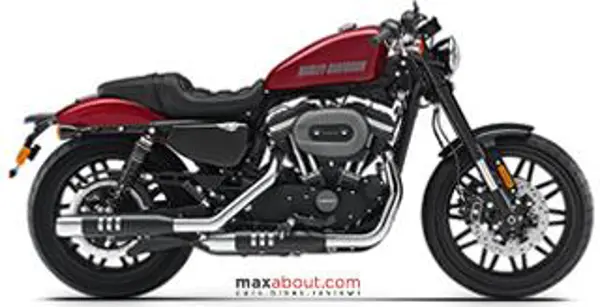

Harley-Davidson Roadster

Harley-Davidson Roadster

 POPULARITY

  • This week: 3510 views
  • All time: 92515 views

Ex-Showroom Price

₹ 10,99,000
* Delhi. May vary.
Discontinued

USER OPINION

Colour Options and Price in India
Bike Variant Harley-Davidson Roadster
Availability Status in India Available
2-Wheeler Type Cruiser
Latest Price in India Harley-Davidson Roadster is priced at INR 10.99 lakh in India (Ex-Showroom).
Fuel Type Petrol
Colour Options Vivid Black, Stone Washed White Pearl, Black Denim, Performance Orange
Official Tagline Live Your Legend
MAXABOUT RATING AND OVERVIEW
Vehicle Overview Roadster XL1200CX is the first of its kind motorcycle in the company's lineup, carrying performance parts like front USD forks, dual disc brakes at the front and minimum body parts possible. It is powered by a 1202cc engine producing 96 Nm at 4,000 rpm while it weighs just 259 kg. The motorcycle competes against Suzuki Intruder and Triumph Thunderbird Storm. It uses a peanut tank with 12.5 liter of fuel capacity.
ENGINE AND GEARBOX
Engine Details Air-cooled, Evolution, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Fuel System System Electronic Sequential Port Fuel Injection (ESPFI)
Cooling Air-Cooling
Engine cc (Displacement) 1202 cc
Maximum Torque 98 Nm @ 4000 rpm
Number of Cylinders 2
Compression Ratio 10:1
Bore 88.9 mm
Stroke 96.8 mm
Primary drive Chain, 38/57 ratio
Number of Gears 5
Clutch Multi-plate, wet
Gear Ratios 1st - 9.315, 2nd - 6.653, 3rd - 4.948, 4th - 4.102, 5th - 3.517
Final Drive Belt, 29/68 ratio
MILEAGE AND TOP SPEED
Mileage 20.40 kmpl (Approx.)
BRAKES AND TYRES
Front Brake Dual floating disc, 11.8 in. x .2 in. (300 mm x 5 mm),
Rear Brake Single disc, 10.24 in. x .28 in. (260 mm x 7 mm)
ABS Optional
Front Tyre 120-70R-19 M/C (Dunlop Harley-Davidson Series)
Rear Tyre 150-70R-18 M/C (Dunlop Harley-Davidson Series)
Front Wheel 19 in. x 3 in. (482.6 mm x 76 mm)
Rear Wheel 18 in. x 4.25 in. (457.2 mm x 108 mm)
Wheel Type 5-spoke alloy wheels
SUSPENSION AND CHASSIS
Front Suspension 43 mm inverted forks
Rear Suspension Variable rate spring over 36 mm piston nitrogen gas-charged emulsion style shock with thread style preload adjustment
Frame (Chassis) Mild steel, tubular frame; circular sections; cast junctions
Front Wheel Travel 115 mm
Rear Wheel Travel 81 mm
DIMENSIONS AND WEIGHT
Overall Length 2185 mm
Overall Width 841 mm
Overall Height 1082 mm
Seat Height 785 mm
Ground Clearance 150 mm
Wheelbase 1505 mm
Dry Weight 250 kg
Kerb Weight 259 kg
Fuel Tank Capacity 12.5 litres
Engine Oil Capacity 2.6 litres
INSTRUMENT CONSOLE FEATURES
Speedometer Digital
Tachometer Analog
Trip Meter Digital
Odometer Digital
BATTERY AND LIGHTING
Pass Light
COMFORT FEATURES
Electric Start
Engine Kill Switch
Miscellaneous Information
Lean Angle, Left (deg.) 31.1°
Lean Angle, Right (deg.) 30.8°
Rake 28.9°
Trail 140 mm

Latest Harley Davidson Sportster News

Recently Added News

Harley-Davidson Roadster Review

20 Jun, 2017 05:30 PM

Quick Review by Maxabout Team

Harley Davidson is very well known for updating its products according to the need of time. This time, they brought a great mash-up of modern technology with the the retro inspired styling from their existing HD Forty Eight and named it as Roadster XL1200CX. The motorcycle carries a few extra bits from the company's signature styling and focus mainly on the performance aspect of a Harley Davidson.

Design & Style

The new Roadster XL1200CX comes with the same under body as the Forty Eight while most of the visual parts have also been kept the same as the other one. It uses the iconic fuel tank design painted in single color for a pure finish while the exhausts are painted in chrome with black panels on both of them. The fenders on the bike have been cut short for a KHR model inspired look on the Roadster. The bike has missed all of the non required parts for a better performance figure out of all in its class. The motorcycle uses a differently placed handlebar while the padded seat provides a more upmarket look to the motorcycle.

Instrument Console

The neat and clean, single pod instrument console on the XL1200CX matches the best to the profile of the motorcycle. The tachometer stays analogue whereas The semi circular area below the same serves as a digital speedometer with a odometer below it. The warning lights like neutral and others are placed in a stripe near the instrument pod. The chrome line around the pod makes it look more rich and attractive than the others.

Dimensions & Weight

The Roadster is 2185 mm in length, 841 mm in width and 1082 mm in height. The wheelbase measures 1505 mm while the ground clearance comes out to be 150 mm. It weighs 259 kg with all the fluids while the fuel tank stays 12.5 liters. It comes with a certified mileage of 20.40 kmpl.

Engine & Gearbox

The engine powering the XL1200CX is a 1202 cc, V-twin motor with 96 Nm of torque at 4000 rpm. The engine is air cooled and comes with two valves per cylinder. It uses a electronic sequential port fuel injection for its fuel system. It comes mated to a 5-speed manual gearbox and uses a belt driven system instead of chain driven in traditional bikes.

Braking & Suspension

The motorcycle comes with dual floating, 300 mm disc brakes at the front while the rear is a single disc measuring 260 mm. ABS has been given as an option on the new Roadster XL1200CX. The front suspension has been changed from the traditional telescopic forks on other bikes to a new 43 mm USD forks with 115 mm of wheel travel. The rear uses twin gas charged shocks with 81 mm of travel. The bike rides on 120/70-19 and 150/70-18 Dunlop Harley Davidson series tyres.

Shades & Variants

The motorcycle is available in Velocity Red Sunglo, Bullet Silver, Black Denim and Vivid Black shade while the only difference in its two variants is the use of ABS on the higher one.

Price

The Harley Davidson Roadster XL1200CX is priced at $11,199 in the US and is now available in India for INR 9.85 lakhs (ex-showroom Delhi).
