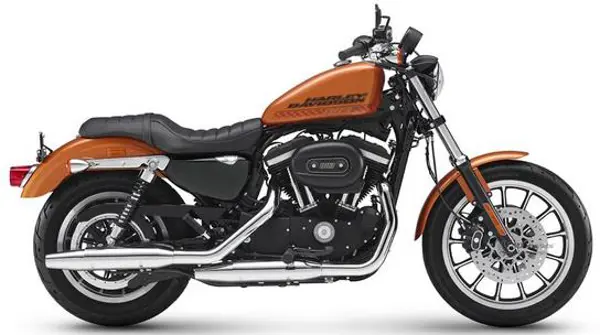

Harley-Davidson 883 Roadster
Specifications
See full specifications
| Displacement | 883 cc |
| Maximum Torque | 70 Nm @ 3750 rpm |
| Number of Cylinders | 2 |
| Number of Gears | 5 |
| Seat Height | 740 mm |
| Ground Clearance | 150 mm |
| Kerb/Wet Weight | 265 kg |
| Fuel Tank Capacity | 12.50 litres |
Harley-Davidson 883 Roadster: Pros & Cons
Pros
-
Awesome Looks
(10 of 12 agree)
-
Advanced Technology
(3 of 3 agree)
-
Solid Build Quality
(4 of 4 agree)
-
Good Value for Money
(6 of 9 agree)
-
Efficient Braking System
(6 of 9 agree)
-
Sporty Riding Position
(5 of 6 agree)
Cons
-
Limited Sales & Service Outlets
(4 of 5 agree)
More Bikes By Harley-Davidson
Harley-Davidson India
QUICK FACTS & SUMMARY | |
| Body Type | Cruiser |
| Fuel Type | Petrol |
| Shades | Mysterious Red Sunglo, Amber Whiskey, Vivid Black |
ENGINE & GEARBOX | |
| Engine Description | Air-cooled, Evolution |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling | Air Cooling |
| Displacement | 883 cc |
| Maximum Torque | 70 Nm @ 3750 rpm |
| Number of Cylinders | 2 |
| Compression Ratio | 09:01 |
| Bore | 76.2 mm |
| Stroke | 96.8 mm |
| Engine Torque Testing Method | EEC/95/1 |
| Engine Diagnostics Readout | |
| Primary drive | Chain, 34/57 ratio |
| Number of Gears | 5 |
| Gear Ratios | Ist-10.41, 2nd-7.436, 3rd-5.531, 4th-4.584, 5th-3.931 |
BRAKES & TYRES | |
| Front Brake | Dual-piston |
| Rear Brake | Dual-piston |
| Front Tyre | 100/90B19 57H |
| Rear Tyre | 150/80B16 77H |
| Wheel Type | Black, 13-Spoke Cast Aluminum |
| Tubeless Tyres | |
| Alloy Wheels | |
SUSPENSION & CHASSIS | |
| Front Suspension | 39 mm |
| Rear Suspension | Coil-over; preload dual-adjustable |
| Frame | Mild steel; tubular frame |
| Exhaust/Muffler | Chrome, staggered, shorty exhaust with dual mufflers |
DIMENSIONS & WEIGHT | |
| Overall Length | 2245 mm |
| Overall Width | 930 mm |
| Overall Height | 1150 mm |
| Ground Clearance | 150 mm |
| Seat Height | 740 mm |
| Wheelbase | 1520 mm |
| Dry Weight | 255 kg |
| Kerb/Wet Weight | 265 kg |
| Fuel Tank Capacity | 12.50 litres |
| Oil tank capacity | 2.6 litres |
INSTRUMENT CONSOLE FEATURES | |
| Speedometer | Handlebar-mounted electronic |
| Trip Meter | Digital-2 |
| ABS Light | |
| LED Indicator Lights | |
| RPM/Gear Display | |
| Low Oil Pressure Light | |
| Fuel Gauge | Digital |
| Low Fuel Warning Light | |
BATTERY & ELECTRICALS | |
| Battery Type | Maintenance Free |
| Capacity | 12 Amp |
| Voltage | 12V |
COMFORT & CONVENIENCE FEATURES | |
| Electric Start | |
| Pillion Footrest | |
| Pass Light | |
| Step-up Seat/Split Seat | |
LIGHTING | |
| Head Light | 55-watt low beam, 60-watt high |
Miscellaneous Information | |
| Lean Angle, Left (deg.) | 32 Degrees |
| Lean Angle, Right (deg.) | 32 Degrees |
| Rake | 29.7 degrees |
| Trail | 112 mm |
