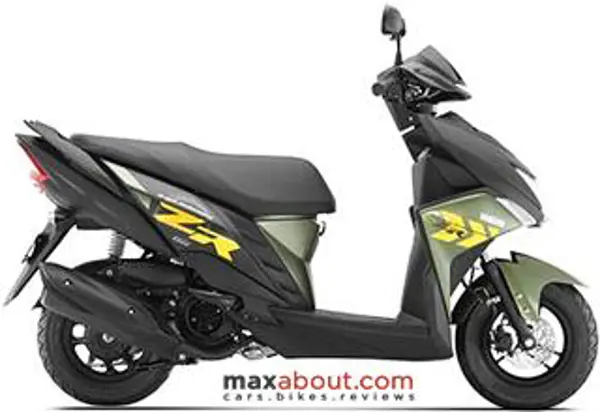

Yamaha Ray ZR Disc Brake UBS

About
The Yamaha Ray ZR Disc Brake UBS is powered by a refined 113cc air-cooled, 4-stroke, SOHC engine that generates 7.2 PS at 7500 rpm and 8.1 Nm of torque at 5000 rpm. It features a V-belt automatic transmission and comes with 10-inch alloy wheels shod in tubeless tyres. The scooter is equipped with a 170mm hydraulic disc brake at the front and a mechanical leading-trailing drum brake at the rear, along with a combined braking system for enhanced safety. It also includes features like Automatic Headlamp On (AHO), side-stand engine cut-off, and a well-engineered suspension assembly consisting of front telescopic forks and rear swing arm with coil spring shock absorbers. The scooters lightweight design and road-hugging tyres make it agile and easy to maneuver in city traffic. Additionally, it offers a spacious 21-litre under-seat storage compartment, making it a practical choice for daily use.
Yamaha Ray ZR Disc Brake UBS

 POPULARITY

  • This week: 11 views
  • All time: 230027 views

Ex-Showroom Price

₹ 57,528
* Delhi. May vary.
Discontinued

USER OPINION

Our take on this /// Verdict
The Yamaha Ray ZR Disc Brake UBS is a well-rounded scooter that offers a blend of style, performance, and practicality. Although it has been discontinued since 2019, its features and performance make it a worthy consideration for those looking for a used scooter. The scooters 113cc air-cooled engine, producing 7.2 PS and 8.1 Nm of torque, provides a smooth and refined ride. The addition of a 170mm hydraulic disc brake at the front enhances braking performance, making it safer and more responsive. However, the stiff suspension can be a bit troublesome on rough roads. Overall, its a great option for city riding, offering good handling and a sporty feel, but it may not be the best choice for those who frequently encounter poor road conditions.
Price
The Yamaha Ray ZR Disc Brake UBS, although discontinued, had a price tag of around Rs 57,528 ex-showroom when it was available. On-road prices would have varied depending on the state and local taxes, but you could expect to pay around Rs 65,000 to Rs 70,000. For those considering purchasing a used model, prices will depend on the scooters condition, mileage, and age, but you can expect to pay significantly less than the original ex-showroom price. As an older model, it offers good value for money if you can find a well-maintained unit.
Latest Updates
Thursday, 08 August 2024 12:29 AM The Yamaha Ray ZR 125 Fi Hybrid has seen high demand in the international market, with 13,400 units dispatched to 27 European countries between January and July 2024. This success has bolstered Yamahas confidence in establishing India as a global manufacturing hub. The scooters aggressive design and extensive feature list, including a digital instrument cluster and Unified Braking System (UBS), have been key factors in its popularity.
Friday, 24 February 2023 05:37 PM Yamaha has updated the Ray ZR 125 Fi Hybrid to meet the new OBD-2 and RDE norms, effective from April 1, 2023. The scooter now features a second-generation on-board self-diagnostic system and is E20-fuel compliant, reducing emissions without compromising performance. I think this move is a significant step towards a greener future in the automotive sector.
Friday, 24 February 2023 07:50 PM The 2023 Yamaha Ray ZR 125 Fi Hybrid comes equipped with a Smart Motor Generator (SMG) System and Intelligent Power Assist, which work together to provide additional power from the electric motor, especially in start-stop or slow-moving traffic. This technology enhances fuel efficiency and overall riding experience.
Friday, 24 February 2023 05:15 AM The Yamaha Ray ZR 125 Fi Hybrid is available in various variants, including the standard drum and disc versions, as well as the Street Rally edition. Prices start at Rs 82,730 for the drum version and go up to Rs 93,530 for the Street Rally edition. The scooter is offered in multiple color options, adding to its appeal.
Friday, 24 February 2023 06:05 AM The scooter features connected technology via the Bluetooth-enabled Y-Connect App, allowing riders to receive phone notifications, track fuel consumption, and receive maintenance alerts directly on the instrument cluster. This integration enhances the riding experience with modern convenience.
Friday, 24 February 2023 03:04 PM The Yamaha Ray ZR 125 Fi Hybrid boasts a lightweight construction, weighing just 99kg, and features a 5.2-litre fuel tank and 21 litres of under-seat storage. The scooter has a ground clearance of 145mm and an accessible seat height of 785mm, making it suitable for a wide range of riders.
Friday, 24 February 2023 03:18 PM Yamaha has incorporated the Unified Braking System (UBS) in the Ray ZR 125 Fi Hybrid, which links the front and rear brakes to provide better stopping power. This system ensures improved braking control by automatically activating the front brakes when the rear brakes are applied. I believe this is a crucial safety feature that enhances rider confidence.
Friday, 24 February 2023 04:44 AM The 2023 Yamaha Ray ZR 125 Fi Hybrid is powered by an 8.2 bhp, 125cc air-cooled, fuel-injected engine that produces 10.3 Nm of torque. The engine is complemented by a Stop & Start system that reduces fuel consumption by cutting power when the scooter is at a standstill.
Friday, 24 February 2023 12:12 AM The Yamaha Ray ZR 125 Fi Hybrid features a front disc brake option, which provides better control and safety compared to the drum brake version. The disc brake model is available in additional color schemes, including Racing Blue and Dark Matte Blue.
Thursday, 31 December 2020 09:24 AM In 2020, the previous model of the Yamaha Ray ZR, with a 113cc engine, was discontinued. However, the new Ray ZR 125 Fi Hybrid has significantly improved features, including a more powerful engine and advanced braking systems like UBS. This upgrade has made the new model more appealing to buyers.
Mileage
Tuesday, 19 November 2024 04:06 AM The Yamaha Ray ZR Disc Brake UBS boasts an impressive mileage figure, with a claimed 66 kmpl thanks to Yamahas Blue Core technology. In real-world conditions, owners have reported mileage ranging from 50 to 60 kmpl, which is still quite efficient. This makes it an excellent choice for daily commuting, helping to keep running costs low.
Colour Options and Price in India
Scooter Variant 2020 Yamaha Ray ZR Disc Brake UBS
Availability Status in India Discontinued
2-Wheeler Type Scooter
Latest Price in India 2020 Yamaha Ray ZR Disc Brake UBS price was Rs 57,528 before being discontinued.
Fuel Type Petrol
Colour Options Disc Brake Model: Fizz White, Matt Green | Drum Brake Model: Rooster Red, Maverick Blue
Official Tagline Next-Generation Real Man’s Scooter
MAXABOUT RATING AND OVERVIEW
Vehicle Overview Yamaha Ray ZR can easily boast of a cool lineage from the parent company Yamaha. Ray ZR comes with a 113cc engine giving a power figure of 7 bhp @ 7500 rpm and gives a torque of 8.1 nm @ 5000 rpm. Also it is an updated version of Yamaha Ray Z with same performance. It faces tough competition from Activa 3G and TVS Jupiter in the same segment.
ENGINE AND GEARBOX
Engine Details Air-cooled, 4-stroke, SOHC, 2-valve
Fuel System Carburetor
Cooling Air Cooling
Engine cc (Displacement) 113 cc
Maximum Power 7.2 HP @ 7500 rpm
Maximum Torque 8.1 Nm @ 5000 rpm
Number of Cylinders 1
Emission Norms BS4-Compliant
Ignition C.D.I (Capacitor Discharge Ignition)
Lubrication Force-feed Lubrication , wet sump
Bore 50 mm
Stroke 57.8 mm
Number of Gears Automatic
Clutch Dry, Centrifugal
Gear Ratios 2.259~0.824
MILEAGE AND TOP SPEED
Mileage 45-55 kmpl (Approx.)
BRAKES AND TYRES
Front Brake 170mm Hydraulic single disc brake
Rear Brake Mechanical leading trailing drum brake
CBS
Front Tyre 90/100-10 53J
Rear Tyre 90/100-10 53J
Front Wheel 10-inch
Rear Wheel 10-inch
Tubeless Tyres
Alloy Wheels
KEY FEATURES AND COMPETITORS
Braking System UBS (Unified Braking System)
SUSPENSION AND CHASSIS
Front Suspension Telescopic Fork
Rear Suspension Unit Swing
Frame (Chassis) Underbone
Front Wheel Travel 90mm
Rear Wheel Travel 75mm
DIMENSIONS AND WEIGHT
Overall Length 1820 mm
Overall Width 700 mm
Overall Height 1115 mm
Seat Height 775 mm
Ground Clearance 130 mm
Wheelbase 1270 mm
Kerb Weight 103 kg
Fuel Tank Capacity 5.2 litres
Under-seat Storage 21 litres
INSTRUMENT CONSOLE FEATURES
Speedometer Analog
Tachometer
Trip Meter
Odometer Analog
Fuel Gauge Analog
BATTERY AND LIGHTING
Pass Light
Battery Type Maintenance Free
Head Light 12V,35/35Wx1
Tail Light 12V,21/5W x 1
Turn Signal Light (Front) 12V, 10W x 2
Turn Signal Light (Rear) 12V, 10W x 2
Head Light Type Halogen Bulb
Automatic Headlamp On (AHO)
COMFORT FEATURES
Electric Start
Pillion Footrest
Pillion Grabrail
