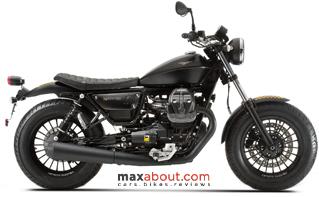

Moto Guzzi V9
POPULARITY
- This week: 2 views
- All time: 658 views
Ex-Showroom Price
₹ 13,60,000
* Delhi. May vary.
Specifications
See full specifications
| 2-Wheeler Type | Cruiser |
| Engine cc (Displacement) | 853 cc |
| Maximum Power | 55 HP @ 6250 rpm |
| Maximum Torque | 62 NM @ 3000 rpm |
| Number of Cylinders | 2 |
| Number of Gears | 6 |
| Seat Height | 745 mm |
| Kerb Weight | 199 kg |
| Fuel Tank Capacity | 15 litres |
Colour Options and Price in India | |
| 2-Wheeler Type | Cruiser |
| Fuel Type | Petrol |
| Colour Options | Black, Silver |
ENGINE AND GEARBOX | |
| Engine Details | 90° V-twin, 4-stroke, 2-valves per cylinder |
| Fuel System | Marelli MIU single-body electronic injection |
| Cooling | Air + Oil cooling |
| Engine cc (Displacement) | 853 cc |
| Maximum Power | 55 HP @ 6250 rpm |
| Maximum Torque | 62 NM @ 3000 rpm |
| Number of Cylinders | 2 |
| Emission Norms | Euro 4 |
| Compression Ratio | 10.5: 1 |
| Bore | 84 mm |
| Stroke | 77 mm |
| Primary drive | Primary drive with helical teeth, ratio 21/25 = 1: 1.190 |
| Number of Gears | 6 |
| Clutch | 170 mm single disc with integrated flexible couplings |
| Gear Ratios | 1st 16/39 = 1:2.437, 2nd 18/32 = 1:1.778, 3rd 21/28 = 1:1.333, 4th 24/26 = 1:1.083, 5th 25/24 = 1:0.96, 6th 28/24 = 1:0.857 |
| Final Drive | Double universal joint and double bevel gear units (8/33 ratio = 1: 4,125 |
BRAKES AND TYRES | |
| Front Brake | Stainless steel floating disc, Ø 320 mm Brembo opposed four-piston callipers |
| Rear Brake | Stainless steel floating disc, Ø 260 mm Brembo opposed two-piston callipers |
| ABS | Brembo with Dual channel Continental ABS system |
| Front Tyre | 130/90 R 16" |
| Rear Tyre | 150/80 R 16" |
| Front Wheel | 2.50" x 19" |
| Rear Wheel | 4.00" x 16" |
| Wheel Type | Aluminium alloy |
SUSPENSION AND CHASSIS | |
| Front Suspension | Traditional fork, Ø 40 mm |
| Rear Suspension | Swingarm with double shock absorber with adjustable spring preload |
| Frame (Chassis) | ALS steel twin tube cradle frame |
| Exhaust/Muffler | Stainless steel, 2-in-2 type, three-way catalytic converter with double lambda probe |
| Front Wheel Travel | 130 mm |
| Rear Wheel Travel | 97 mm |
DIMENSIONS AND WEIGHT | |
| Overall Length | 2124 mm |
| Overall Width | 892 mm |
| Overall Height | 1100 mm |
| Seat Height | 745 mm |
| Wheelbase | 1480 mm |
| Kerb Weight | 199 kg |
| Fuel Tank Capacity | 15 litres |
| Reserve Fuel Capacity | 4 litres |
INSTRUMENT CONSOLE FEATURES | |
| Speedometer | Analog |
| Tachometer | |
| Trip Meter | Digital |
| Odometer | Digital |
| Clock | Digital |
| ABS Light | |
| Fuel Gauge | Digital |
BATTERY AND LIGHTING | |
| Pass Light | |
| Battery Type | MF |
| Capacity | 18 Ah |
| Voltage | 12 V |
COMFORT FEATURES | |
| Pillion Backrest | |
| Electric Start | |
| Pillion Grabrail | |
| Engine Kill Switch | |
| Pillion Footrest | |
Miscellaneous Information | |
| Trail | 125.1 mm (116.1 mm) |
| Steering Angle | 38° |
