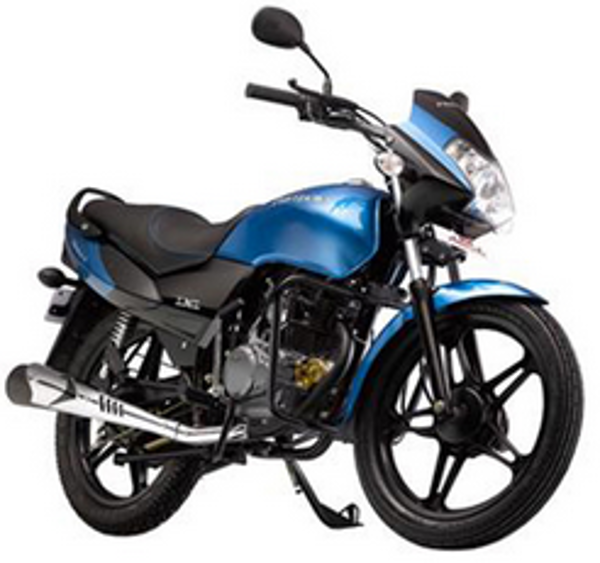

LML Freedom LS

Ex-Showroom Price

₹ 52,198
* Delhi. May vary.

USER OPINION

QUICK FACTS & SUMMARY
Body Type Commuter
Fuel Type Petrol
Mileage 55-65 kmpl (approx.)
Top Speed 95+5 kmph
Shades Flaming Red, Ocean Blue
ENGINE & GEARBOX
Engine Description Single cylinder, four stroke, air cooled with single overhead cam and two valves
Fuel System KEIHIN PB18
Cooling Air Cooling
Displacement 109.15 cc
Maximum Power 8.5+0.5 Bhp @ 7750 rpm
Maximum Torque 8.5 Nm @ 5000 rpm
Number of Cylinders 1
Ignition Digital microcontroler CDI with throttle control switch
Compression Ratio 9.0+0.5:1
Bore 53 mm
Stroke 49.5 mm
Spark Plug Model Type MICO - UHR3CC
Number of Gears 4
Clutch Multiplate Oil Bath Type
Gear Ratios 1st=2.923, 2nd=1.889, 3rd=1.318, 4th=1.000
Primary Reduction Ratio 3.579
Secondary Reduction Ratio 2.786
BRAKES & TYRES
Front Brake Drum Mechanical Expanding Shoe Type
Rear Brake Drum Mechanical Expanding Shoe Type
Front Tyre 2.75 X 18, 4PR/4P
Rear Tyre 3.00 X 18, 6PR/52P
Wheel Type Alloys
Tubeless Tyres
Alloy Wheels
SUSPENSION & CHASSIS
Front Suspension Hydraulic Telescopic Forks 100mm Stroke
Rear Suspension Adjustable 5-Step Chrome Plated Helical Springs & Hydraulic dampers
Frame Unique T-Control Frame, Tubular structure
DIMENSIONS & WEIGHT
Overall Length 2010 mm
Overall Width 725 mm
Overall Height 1080 mm
Ground Clearance 165 mm
Seat Height 820 mm
Wheelbase 1235+20 mm
Kerb/Wet Weight 119 kg
Fuel Tank Capacity 12.25 litres
Reserve Fuel Capacity 1 litres
INSTRUMENT CONSOLE FEATURES
Speedometer Analog
Fuel Gauge Analog
BATTERY & LIGHTING
Pass Light
Battery Type Maintenance Free
Capacity 2.5Ah (Kick Start), 5Ah (Self Start)
Voltage 12V
Head Light 12V 35W/35W Halogen
Tail Light 12V 21W/5W
Turn Signal Light (Front) 12V 10W (Amber)
Turn Signal Light (Rear) 12V 10W (Amber)
Position Lamp 12V 5W
COMFORT & CONVENIENCE FEATURES
Electric Start
Pillion Footrest
Step-up Seat/Split Seat
