2-Wheeler Type | Commuter |
Engine cc (Displacement) | 132 cc |
Maximum Power | 14 BHP @ 7500 rpm |
Maximum Torque | 12.25 NM @ 7000 rpm |
Number of Cylinders | 1 |
Number of Gears | 5 |
Seat Height | 765 mm |
Ground Clearance | 136 mm |
Kerb Weight | 116 kg |
Fuel Tank Capacity | 10.5 litres |
Pros
-
Good Looks
(2948 of 3362 agree)
-
Solid Build Quality
(2371 of 2722 agree)
-
Powerful Engine
(2592 of 2910 agree)
-
Good Value for Money
(2326 of 2723 agree)
Cons
-
Discontinued
(1210 of 2127 agree)
Colour Options and Price in India | |
Bike Variant | Yamaha RX 135 |
Availability Status in India | Discontinued |
2-Wheeler Type | Commuter |
Latest Price in India | Yamaha RX 135 price was Rs 40,000 before being discontinued. |
Fuel Type | Petrol |
Colour Options | Black Gold, Candy Maroon, Riviera Green |
India Launch Update | Although a lot of Yamaha RX 135 fans are waiting for the relaunch of 135cc RX in India, unfortunately, Yamaha has no plans to launch the updated BS6 model of RX 135 with a 4-stroke engine. Some of the websites claim that Yamaha will relaunch the RX 135 in India but we would like to make it clear that all such reports are false. |
MAXABOUT RATING AND OVERVIEW | |
Design | |
Performance | |
Comfort | |
Fuel Economy | |
Features | |
Build Quality | |
ENGINE AND GEARBOX | |
Engine Details | 132cc, 2 stroke,air cooled, single-cylinder, 7 port torque induction |
Cooling | Air Cooling |
Engine cc (Displacement) | 132 cc |
Maximum Power | 14 BHP @ 7500 rpm |
Maximum Torque | 12.25 NM @ 7000 rpm |
Number of Cylinders | 1 |
Ignition | Electronic CDI |
Compression Ratio | 10.1 : 1 |
Bore | 58 mm |
Stroke | 50 mm |
Air Cleaner | Washable PU Foam |
Number of Gears | 5 |
Clutch | Wet Multi Disc |
Final Drive | Chain |
MILEAGE AND TOP SPEED | |
Mileage | Yamaha RX 135 mileage is 25-35 kmpl (approximate). |
Performance | In terms of performance, the 135cc motorcycle can accelerate from 0-100 kmph in around 16 seconds. |
Top Speed | Yamaha RX 135 top speed is 110 kmph (company-claimed). |
BRAKES AND TYRES | |
Front Brake | 130mm Drum Brake |
Rear Brake | 130mm Drum Brake |
Front Tyre | 2.75x18" - 4PR |
Rear Wheel | 3.00x18" - 6PR |
Wheel Type | Wired Spoke Wheels |
Tubeless Tyres | |
Alloy Wheels |
PERFORMANCE FIGURES | |
0-100 kmph | 16 secs |
KEY FEATURES AND COMPETITORS | |
Key Features | Lightweight, 7-Port Torque Induction, Washable Air Filter, Spoke Wheels |
Similar Bikes | Bajaj Pulsar 135LS |
SUSPENSION AND CHASSIS | |
Front Suspension | Telescopic Forks, Oil Damped |
Rear Suspension | Swing Arm, Coil Spring, Oil Damped, Adjustable (5 Positions) |
Frame (Chassis) | Duplex Double Cradle Type |
DIMENSIONS AND WEIGHT | |
Overall Length | 1965 mm |
Overall Width | 740 mm |
Overall Height | 1040 mm |
Ground Clearance | 136 mm |
Seat Height | 765 mm |
Wheelbase | 1245 mm |
Dry Weight | 108 kg |
Kerb Weight | 116 kg |
Fuel Tank Capacity | 10.5 litres |
Reserve Fuel Capacity | 1.5 litres |
Engine Oil Capacity | 1.2 litres |
Turning Circle | 2100 mm |
INSTRUMENT CONSOLE FEATURES | |
Speedometer | Analog |
Tachometer | |
Odometer | Analog |
BATTERY AND LIGHTING | |
Battery Type | MF |
Capacity | 2.5AH |
Voltage | 12V |
Head Light | 12V-35W/35W |
Turn Signal Light (Front) | 12V-10W |
Turn Signal Light (Rear) | 12V-10W |
COMFORT FEATURES | |
Electric Start | |
Pillion Footrest | |
Step-up Seat/Split Seat | |
Miscellaneous Information | |
Climbing Ability | 10 degree |
Yamaha RX 135 Review
Quick Review by Maxabout Team

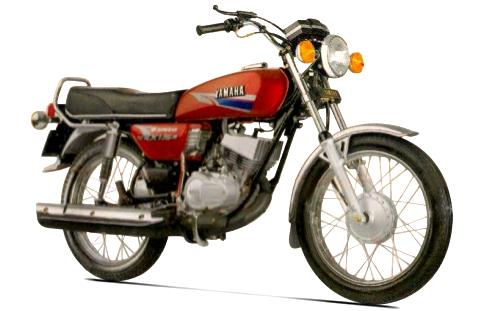

Yamaha RX135 can be more clearly seen as a bigger version of the RX100, which was a superstar of its time. The RX135 has minor changes over the smaller one, making more power and having more gears than the RX100. The only major difference was the name badge which displayed that whether it's a 100 or a 135. The RX135 shares its design with the much older RX100. The motorcycle again offers chrome everywhere. Since it suits the body design, we won't say it was a negative approach. Yamaha would have made it with the thought of empowering the little buddy RX100 and hence justifies the 3 more BHP's in the numbers. The classic spoke wheeled ride is in the trends even after a decade of its discontinuation.
Yamaha had planted a 132cc motor, which was a 2-stroke air-cooled system, producing 14 BHP @ 7500 rpm and 12.25 NM @ 7000 rpm. The motorcycle performed very well and its acceleration was really awesome. The 135 cc motor was expected to decrease the figures of 0-60 kmph, but due to increased weight of the bike, the change was not so excellent. Overall, RX 135 was powerful than the RX 100, but for that, the mileage was equally sacrificed. The mileage dropped to 30 kmpl. The braking is supported by 130mm drum units, both for the front and the rear.
The suspension was handled by telescopic forks at the front and swingarm, coil spring type at the rear with 5- step adjustments. The motorcycle missed an option for the disc braking system and made it extremely risky to drive at high speeds. Yamaha offered its RX135 in Black Gold, Candy Maroon and Riviera Green options. It was priced at INR 40,000 (approx.). With an improvement in performance over its older version, the 135cc machine was really impressive. The lack of safety made it a lesser practical version and after that, an option with disc brake was given, which was named RXZ 135.
