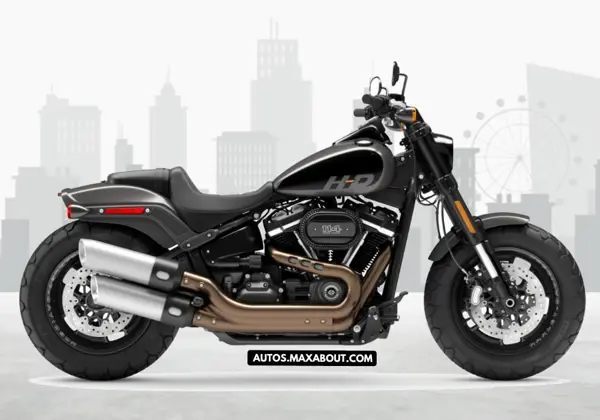

Harley-Davidson Fat

Ex-Showroom Price

₹ 14,59,000 - ₹ 18,11,000
* Delhi. May vary.

USER OPINION

QUICK FACTS & SUMMARY
Body Type Cruiser
Fuel Type Petrol
Mileage 17.85 kmpl (approx.)
Top Speed 182 kmph
Shades Vivid Black, Flame Blue Pearl, Black Ice Pearl, Scarlet Red, Silver Pearl
Vehicle Overview Fat Bob is one of the popular power cruisers of India. It comes with a 1585 cc, twin cylinder motor that is good for 65 BHP at 5500 rpm and 121 Nm at 3500 rpm. The heavyweight motorcycle weighs 321 kg and claims a top speed of 182 kmph. The fuel tank for the same measures 18.9 litres while its seat height is quite low at 690 mm. The motorcycle caries twin headlights at the front and rivals Suzuki Intruder M1800R, Triumph Thunderbird and Honda Fury VT1300CX. HD Fat Bob comes with ABS for efficient braking and uses twin 299 mm front disc brakes for the purpose.
ENGINE & GEARBOX
Engine Description Air-cooled, Twin Cam 96
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Cooling Air Cooling
Displacement 1585 cc
Maximum Power 65 Bhp @ 5500 rpm
Maximum Torque 121 Nm @ 3500 rpm
Number of Cylinders 2
Compression Ratio 9.2:1
Bore 95.3 mm
Stroke 111.1 mm
Engine Torque Testing Method EEC/95/1
Engine Diagnostics Readout
Primary drive Chain, 34/46 ratio
Number of Gears 6
Gear Ratios 1st-9.311, 2nd-6.454, 3rd-4.793, 4th-3.882, 5th-3.307, 6th-2.79
BRAKES & TYRES
Front Brake Twin 299mm Discs, 4-piston Caliper
Rear Brake 292mm Single Disc, 2-piston Caliper
ABS
Front Tyre 130/90B16 67H
Rear Tyre 180/70B16 77H
Front Wheel Gloss Black Cast Aluminum Wheel w/ Laser Etched Graphics
Rear Wheel Gloss Black Cast Aluminum Wheel w/ Laser Etched Graphics
SUSPENSION & CHASSIS
Front Suspension Telescopic Forks
Rear Suspension Coil-over Shock
Frame Mild Steel, Tubular Frame
Exhaust/Muffler Chrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers
DIMENSIONS & WEIGHT
Overall Length 2400 mm
Overall Width 890 mm
Overall Height 1130 mm
Ground Clearance 125 mm
Seat Height 690 mm
Wheelbase 1620 mm
Dry Weight 306 kg
Kerb/Wet Weight 321 kg
Fuel Tank Capacity 18.9 litres
Oil tank capacity 2.8 litres
INSTRUMENT CONSOLE FEATURES
Speedometer Tank-mounted electronic speedometer
Tachometer Analog
Trip Meter Digital-2
Odometer
RPM/Gear Display
Low Oil Pressure Light
Fuel Gauge Digital
Low Fuel Warning Light
BATTERY & LIGHTING
Pass Light
Battery Type Maintenance Free
Capacity 19 Ah
Voltage 12V
Head Light 55W/60W
Turn Signal Light (Front)
COMFORT & CONVENIENCE FEATURES
Electric Start
Pillion Footrest
Step-up Seat/Split Seat
Security System
Miscellaneous Information
Lean Angle, Left (deg.) 31 degrees
Lean Angle, Right (deg.) 30 degrees
Rake 29 degrees
Trail 125 mm
