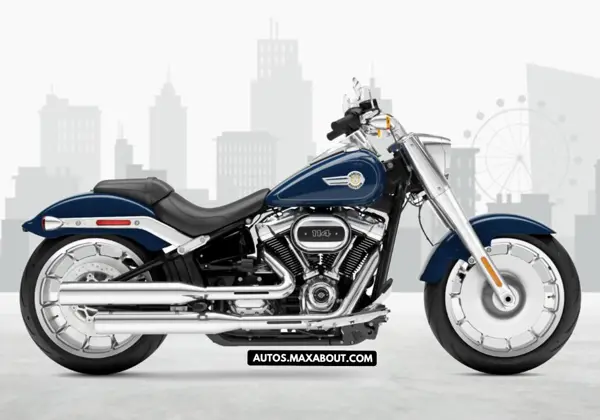

Harley-Davidson Fat Boy BS6
Specifications
See full specifications
| Displacement | 1746 cc |
| Maximum Torque | 145 Nm @ 3000 rpm |
| Number of Cylinders | 2 |
| Emission Standard | BS6-Compliant |
| Number of Gears | 6 |
| Seat Height | 675 mm |
| Ground Clearance | 115 mm |
| Kerb/Wet Weight | 317 kg |
| Fuel Tank Capacity | 18.9 litres |
Harley-Davidson Fat Boy BS6: Pros & Cons
Pros
-
Good Looks
(23 of 27 agree)
-
Advanced Technology
(13 of 16 agree)
-
Solid Build Quality
(19 of 20 agree)
-
Powerful Engine
(23 of 28 agree)
-
Efficient Braking System
(16 of 19 agree)
Cons
-
Limited Sales & Service Outlets
(8 of 12 agree)
More Bikes By Harley-Davidson
Harley-Davidson India
QUICK FACTS & INFORMATION | |
| Bike Variant | Harley-Davidson Fat Boy BS6 |
| Current Status | Available |
| Braking System | 2-Channel ABS (Anti-Lock Braking System) |
| Body Type | Cruiser |
| Fuel Type | Petrol |
| Ex-Showroom Price | BS6 Harley-Davidson Fat Boy price is Rs 18.25 lakh (ex-showroom). |
| Shades | Vivid Black, Midnight Blue, Barracuda Silver, Spruce, River Rock Gray/Vivid Black, Barracuda Silver Denim/Black Denim, Stiletto Red, Zephyr Blue/Black Sunglo |
| Key Highlights | ABS, Security System, Engine Diagnostics Reader, Machined Lakester Cast Aluminium Wheel, Electronic Sequential Port Fuel Injection (ESPFI), Signature LED Forward Lighting |
ENGINE & GEARBOX | |
| Engine Description | 1746cc, Milwaukee-Eight 107 Engine |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling | Air+Oil Cooled |
| Displacement | 1746 cc |
| Maximum Torque | 145 Nm @ 3000 rpm |
| Number of Cylinders | 2 |
| Emission Standard | BS6-Compliant |
| Compression Ratio | 10.0:1 |
| Bore | 98.4 mm |
| Stroke | 111.1 mm |
| Engine Torque Testing Method | EC 134/2014 |
| Engine Diagnostics Readout | |
| Primary drive | Chain, 34/46 Ratio |
| Number of Gears | 6 |
| Gear Ratios | 1st-9.311, 2nd-6.454, 3rd-4.793, 4th-3.882, 5th-3.307, 6th-2.79 |
BRAKES & TYRES | |
| Front Brake | 4-Piston Fixed Caliper |
| Rear Brake | 2-Piston Floating Caliper |
| ABS | |
| Front Tyre | 160/60-R18 70V BW |
| Rear Tyre | 240/40-R18 79V BW |
| Wheel Type | Machined, Lakester Cast Aluminium |
| Tubeless Tyres | |
| Alloy Wheels | |
SUSPENSION & CHASSIS | |
| Front Suspension | Telescopic Forks |
| Rear Suspension | Monoshocks |
| Exhaust/Muffler | 2-into-2 Staggered Catalyst in Muffler |
DIMENSIONS & WEIGHT | |
| Overall Length | 2370 mm |
| Ground Clearance | 115 mm |
| Seat Height | 675 mm |
| Wheelbase | 1665 mm |
| Dry Weight | 304 kg |
| Kerb/Wet Weight | 317 kg |
| Fuel Tank Capacity | 18.9 litres |
| Engine Oil Capacity | 4.7 litres |
INSTRUMENT CONSOLE FEATURES | |
| Speedometer | Analogue |
| Tachometer | Analogue |
| Trip Meter | Digital |
| Odometer | Digital |
| Clock | Digital |
| LED Indicator Lights | |
| RPM/Gear Display | |
| Low Oil Pressure Light | |
| Fuel Gauge | |
| Low Fuel Warning Light | |
| Low Battery Indicator | |
BATTERY & LIGHTING | |
| Pass Light | |
| Battery Type | Maintenance Free |
| Turn Signal Light (Front) | |
| Turn Signal Light (Rear) | |
COMFORT & CONVENIENCE FEATURES | |
| Electric Start | |
| Pillion Footrest | |
| Step-up Seat/Split Seat | |
| Security System | |
Miscellaneous Information | |
| Lean Angle, Right (deg.) | 25.6 degree |
| Lean Angle, Left (deg.) | 25.6 degree |
| Rake | 30 degree |
| Trail | 104 mm |
