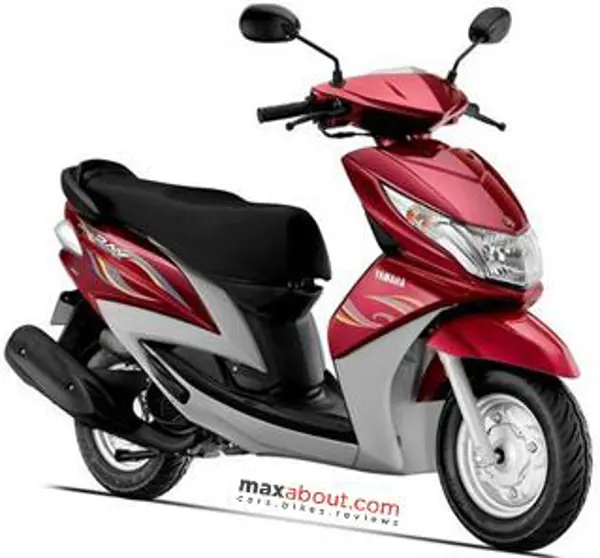

Yamaha Ray BLUE CORE


  • This week: 817 views
  • All time: 917303 views

Ex-Showroom Price

₹ 48,105
* Delhi. May vary.


Note Above mentioned price of Yamaha Ray is ex-showroom (Delhi). Price may vary as per applicable state taxes/octroi etc. Please collect exact price details from your nearest Yamaha authorized dealer.
Scooter Category (cc) 100cc-125cc
Official Product Highlights (Key Features) Comfortable long seat with grab bar, compact LEG shield, dynamic head-light, instrument panel with crystal lens, stylish tail-light
Type Scooter
Status Available
Official Tagline Life is an Adventure
Shades/Colors Starry White, Plush Pink, Shining Blue, Burgundy Bliss, Grey Grandeur and Black Star
Warranty For 2 years or 24000 kms from the date of purchase (whichever is earlier)
Frame/Chassis Underbone
Displacement 113 cc
Maximum Power 7 Bhp @ 7500 rpm
Maximum Torque 8.1 Nm @ 5000 rpm
Engine Description Newly designed air-cooled 113cc four stroke single cylinder engine with BLUE CORE technology
Cooling Air Cooling
Fuel System Carburetor
Ignition C.D.I (Capacitor Discharge Ignition)
Lubrication Force-feed Lubrication , wet sump
Bore 50 mm
Stroke 57.8 mm
Number of Cylinders 1
Gearbox V-belt automatic
Clutch Dry, Centrifugal
Gear Ratios 2.259~0.824
Primary Reduction Ratio 1.000
Secondary Reduction Ratio 9.388
Front Brake 130mm drum
Rear Brake 130mm drum
Front Suspension Telescopic
Rear Suspension Unit Swing
Front Tyre 90/100-10 53J
Rear Tyre 90/100-10 53J
Wheel Type Steel Wheels
Tubeless Tyres
Alloy Wheels
Battery Type Maintenance Free
Capacity 5 AH (10 H)
Voltage 12V
Horn Single/Mono
Overall Length 1835 mm
Overall Width 675 mm
Overall Height 1075 mm
Ground Clearance 128 mm
Seat Height 760 mm
Wheelbase 1270 mm
Kerb/Wet Weight 104 kg
Fuel Tank Capacity 5 litres
Oil tank capacity 0.8 litres
0-60 kmph 12 secs
Top Speed 86 kmph
Mileage (City, approx.) 40 kmpl
Mileage (Highway, approx.) 66 kmpl
Mileage (Combined, approx.) 52 kmpl
Speedometer Analogue
Fuel Gauge Analogue
Electric Start
Pillion Footrest
Pass Light
Step-up Seat/Split Seat
Caster Angle 27.5
Trail 103
Head Light Halogen bulb 12V,35W/35W X1
Tail Light 12V,21W/5W X1
Turn Signal Light (Front) 12V, 10W X2
Turn Signal Light (Rear) 12V, 10W X2

Yamaha Ray BLUE CORE Review

15 Dec, 2015 10:21 AM


Yamaha is known for its high quality performance machines and everyone knows that they won't compromise on it. Yamaha India has been launching many successful models from the very beginning and with the urge to stay intact in every segment of the Indian motorcycle industry. Yamaha has been updating its offering from time to time. Yamaha Ray is a gearless scooter from Yamaha, which has not gained popularity despite of its advance technologies than the rivals.

Design & Style

The Yamaha Ray uses a different scope of styling rather than following a common structure of a gearless scooter. The main attraction being its huge sized headlight placed on the lower part of front body instead of handlebar mounted lamp. The indicators on both side increases the aggressiveness but the whole structure looks odd to some eyes. Its styling is all about your taste, you like being unique and it will justify.

Instrument Console

The Ray features a simple looking analogue instrument console, which comprises of a speedometer in the center and the fuel indicator in a different compartment below it. The background remains textured black inside the meter and the high beam indicator stays on the right of the speedometer. The odometer, as always stays inside the speedometer area.

Engine & Performance

The Yamaha Ray has a 113 cc motor, which produces 7 BHP @ 7500 rpm and 8.1 NM @ 5000 rpm. The CVT transmission has been used for the gearless scooter and it also houses the new Yamaha Blue-core technology, which is said to increase the efficiency of the scooter, both in terms of mileage and performance. The fuel system remains carburettor controlled and the cooling remains in the hand of air only.

Brakes & Suspension

The braking unit on both the tires include a 130 mm drum braking system. The suspension at the front is telescopic, which is not even offered in the bestseller automatic scooter in India. The rear has the traditional unit swing type and the combo of 90/100-R10 tires for both front and back are making it a complete comfortable unit for city riding.

Shades & Ex-showroom Price

The Yamaha Ray is available in Black Star, Burgundy Bliss and Starry White shade with a price tag of INR 47,805. The price seems quiet nominal as compared to other scooters in the market, with lesser comfort features than the Ray.


Yamaha Ray 110 BLUE CORE - Life is an Adventure
Yamaha Ray 110 Infographic


News and FAQs

Most Popular News and FAQs for Yamaha Ray BLUE CORE
Frequently Asked Questions

Questions About Yamaha Ray

Recently Asked Questions

User Reviews for Yamaha Ray

Reviews Submitted by Maxabout Community

Fun to Ride

arushi sethi | Updated 3 months ago
(2 users found this helpful)

Yamaha Ray is a well-balanced scooter with excellent mileage and sharp handling. The triangular instrument cluster uses clear lens for amazing visibility, be it day or night. ... read more

Best Features: Lightweight & Smooth Engine

Pros: Brakes, build quality, light weight, smooth engine, excellent handling, great styling

Cons: Low horn, Improper footrest

Value For Money
Customer Service

Reliable Scooter for Our Short Run Abouts in the City

Kansihka Chauhan | Updated 4 months ago
(0 users found this helpful)

I bought Yamaha Ray after thorough study of all other scooters. I am 5'3" so I was looking for scooter according to my height. Yamaha Ray is low in height as well as light in weight. ... read more

Best Features: .Build Quality

Pros: Seating position, Ride quality, Road grip, Acceleration upto 60kms/hr

Cons: Low ground clearance, Under seat storage space

Value For Money
Customer Service
