Mahindra Mojo Tourer BS4

Mahindra Mojo Tourer BS4

 POPULARITY

  • This week: 632 views
  • All time: 17569 views

Ex-Showroom Price

₹ 1,89,000
* Delhi. May vary.
Discontinued

USER OPINION

Colour Options and Price in India
2-Wheeler Type Touring
Fuel Type Petrol
Colour Options Volcano Red, Charcoal Black, Glacier White
Official Tagline Your partner for the open road
MAXABOUT RATING AND OVERVIEW

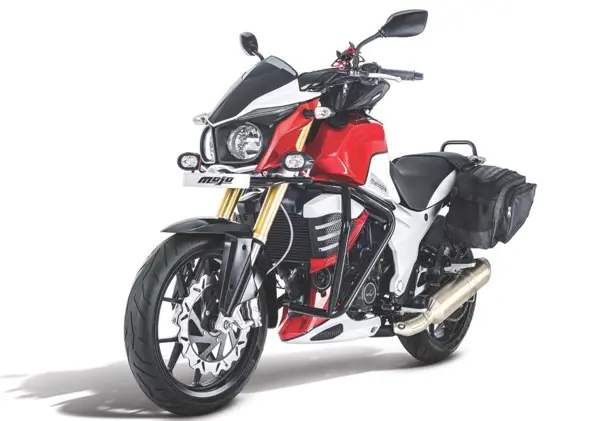

Vehicle Overview Mahindra Mojo Tourer Edition was launched in order to provide much more simplification to the buyers who wish to add more and more miles to their odometer everyday. Keeping everything in check, the Tourer Edition comes with magnetic tank bag, saddle bags, fog lamps, mobile holder and front engine guard. It rivals Royal Enfield Himalayan in its segment while use a lot more premium components on its body.
ENGINE AND GEARBOX
Engine Details Liquid-cooled, Single Cylinder, 4-stroke, Si Engine, DOHC
Fuel System Digital Electronic Ignition (Bosch ECU)
Cooling Liquid Cooling
Engine cc (Displacement) 294.72 cc
Maximum Power 26.82 BHP @ 8000 rpm
Maximum Torque 30 Nm @ 5500 rpm
Number of Cylinders 1
Emission Norms Euro 3 & BS IV
Lubrication Wet sump with forced lubrication
Compression Ratio 11:01
Bore 76 mm
Stroke 65 mm
Valve System Chain Driven, DOHC, 4-valves
Cylinder Layout Inclined 18-degree from Vertical
Air Filter Type Paper type air filter
Spark Plug Model Type BOSCH IRIDIUM
Throttle Bore 38 mm
Idling Speed 1,500 (+/- 50) rpm
Oil Grade 10W50 4T JASO MA-2
Spark Plug Gap 0.7 mm
Engine Weight 35 kg
Oil Pump Type Trochoid
Maintenance Service Intervals 1st oil change at first servicing (500-750 kms), followed by an oil change every 6000 kms
Number of Gears 6
Gearbox Type Constant Mesh
Clutch Wet multi-plate clutch
Primary Reduction Ratio 2.346 (61/26)
Final Reduction Ratio 3.4615 (45/13)
Gear Pattern 1-down, 5-up
Clutch Operation Pull Type
MILEAGE AND TOP SPEED
Mileage 25-35 kmpl (approx.)
BRAKES AND TYRES
Front Brake 320mm Petal Disc Brake (radial calliper)
Rear Brake 240mm Petal Disc Brake (floating calliper)
ABS
Brake Fluid DOT4 Brake Fluid
Rear Disc Thickness 4.5 mm
Front Disc Thickness 4.0 mm
Front Tyre 110/70 ZR17 M/C 54W (Pirelli Diablo Rosso II)
Rear Tyre 150/60 ZR17 M/C 66W (Pirelli Diablo Rosso II)
Front Wheel 10-spoke 17-inch
Rear Wheel 10-spoke 17-inch
Front Tyre Pressure 29 psi
Rear Tyre Pressure Single Rider - 33 psi, With a Pillion Rider - 36 psi
Wheel Size 17-inch
Wheel Type 10-spoke Alloys
Tubeless Tyres
Alloy Wheels
SUSPENSION AND CHASSIS
Front Suspension USD (upside down) telescopic forks
Rear Suspension High pressure gas charged mono-shock with internal floating position
Frame (Chassis) Twin Tube Exposed Frame, Coaxial Mounting of Engine - Frame & Swing Arm
Front Wheel Travel 143.5 mm
Rear Wheel Travel 143 mm
DIMENSIONS AND WEIGHT
Overall Length 2100 mm
Overall Width 800 mm
Overall Height 1165.5 mm
Ground Clearance 173.5 mm
Seat Height 814.5 mm
Wheelbase 1465 mm
Dry Weight 165 kg
Fuel Tank Capacity 21 litres
Engine Oil Capacity 1.25 litres
INSTRUMENT CONSOLE FEATURES
Speedometer Digital
Tachometer Analog
Trip Meter Digital
Odometer Digital
Clock Digital
RPM/Gear Display
Fuel Gauge Digital
Low Battery Indicator
Fuel Reserve Indicator
RPM Limit Indicator
0-100 KMPH Timer
Malfunction Indicator
Roll Over Sensor
Maximum Speed Recorder
BATTERY AND LIGHTING
Pass Light
Battery Type Maintenance Free
Capacity 11.2 AH
Voltage 12V
Head Light 12V, 35W/35Wx2; H17
Tail Light 12V, LED, 12 nos.
Turn Signal Light (Front) 12V, 10W
Turn Signal Light (Rear) 12V, 10W
Head Light Type Halogen
Projector Head Light
COMFORT FEATURES
Pillion Footrest
Stand Alarm
Electric Start
Pillion Grabrail
Step-up Seat/Split Seat
Miscellaneous Information
Caster 28-degree
Trail 107 mm
