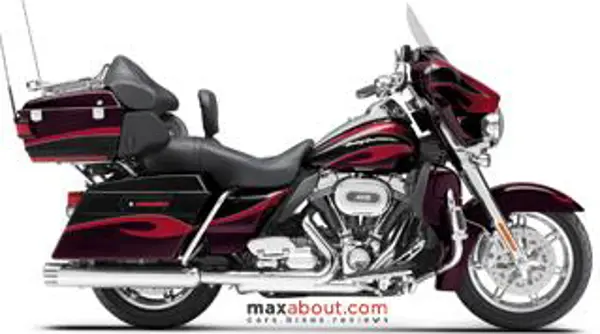

Harley-Davidson CVO
Ex-Showroom Price
₹ 26,00,000 - ₹ 49,99,000
* Delhi. May vary.
Specifications
See full specifications
| Displacement | 1690 cc |
| Maximum Torque | 138 Nm @ 3750 rpm |
| Number of Cylinders | 2 |
| Number of Gears | 6 |
| Seat Height | 740 mm |
| Ground Clearance | 115 mm |
| Kerb/Wet Weight | 411 kg |
| Fuel Tank Capacity | 22.70 litres |
More Bikes By Harley-Davidson
Harley-Davidson India
QUICK FACTS & SUMMARY | |
| Body Type | Touring |
| Fuel Type | Petrol |
| Shades | Black Magic, White Hot Pearl and Blue Hot Pearl, Amber Whiskey and Charcoal Pearl, Mysterious Red Sunglo and Blackened Cayenne Sunglo, Brilliant Silver Pearl, Vivid Black |
ENGINE & GEARBOX | |
| Engine Description | Twin-Cooled™ High Output Twin Cam 103™ |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling | Air Cooling |
| Displacement | 1690 cc |
| Maximum Torque | 138 Nm @ 3750 rpm |
| Number of Cylinders | 2 |
| Compression Ratio | 10:01 |
| Bore | 98.4 mm |
| Stroke | 111.1 mm |
| Engine Torque Testing Method | EEC/95/1 |
| Engine Diagnostics Readout | |
| Primary drive | Chain, 34/46 ratio |
| Number of Gears | 6 |
| Gear Ratios | 1st-9.593, 2nd-6.65, 3rd-4.938, 4th-4.0, 5th-3.407, 6th-2.875 |
BRAKES & TYRES | |
| Front Brake | 32mm 4 Piston Fixed |
| Rear Brake | 32mm 4 Piston Fixed |
| Front Tyre | BW 130/80B17 65H |
| Rear Tyre | BW 180/65B16 81H |
| Wheel Type | Black, 10-Spoke Cast Aluminum |
| Tubeless Tyres | |
| Alloy Wheels | |
SUSPENSION & CHASSIS | |
| Front Suspension | 41.3 mm telescopic |
| Rear Suspension | Hydraulic, adjustable |
| Frame | Mild steel; tubular frame |
| Exhaust/Muffler | Chrome, 2-1-2 dual exhaust with tapered mufflers |
DIMENSIONS & WEIGHT | |
| Overall Length | 2600 mm |
| Overall Width | 884 mm |
| Overall Height | 1448 mm |
| Ground Clearance | 115 mm |
| Seat Height | 740 mm |
| Wheelbase | 1625 mm |
| Dry Weight | 394 kg |
| Kerb/Wet Weight | 411 kg |
| Fuel Tank Capacity | 22.70 litres |
| Oil tank capacity | 3.8 litres |
| Luggage Capacity | 132 litres |
INSTRUMENT CONSOLE FEATURES | |
| Speedometer | Analog |
| Tachometer | Analog |
| Odometer | |
| Volt Gauge | |
| Fuel Consumption Gauge | |
| Low Oil Pressure Light | |
| Fuel Gauge | Analog |
| Low Fuel Warning Light | |
| Gear Indicator | |
BATTERY & ELECTRICALS | |
| Battery Type | Maintenance Free |
| Capacity | 28 Ah |
| Voltage | 12V |
PERFORMANCE & MILEAGE | |
| Mileage | 17.8 kmpl (approx.) |
COMFORT & CONVENIENCE FEATURES | |
| Electric Start | |
| Pillion Footrest | |
| Pass Light | |
| Step-up Seat/Split Seat | |
| Hands-free Mobile Phone - via Bluetooth | Standard |
| Voice Recognition Languages | English (US) |
| Rider/Pillion Intercom | Standard |
| Text-to-Speech (TTS) Languages | English (US) |
| Cruise Control | |
| Pillion Backrest | |
LIGHTING | |
| Head Light | 55-watt low beam, 120-watt high |
Miscellaneous Information | |
| Lean Angle, Right (deg.) | 31.9 degrees |
| Lean Angle, Left (deg.) | 31.8 degrees |
| Trail | 170 mm |
INFOTAINMENT | |
| Screen Size | 4.3 inch |
| Day/Night Dimmer | Standard |
| Watts Per Channel | 25 W |
| Speakers | 4 |
| Speaker Size | 5.25 inch/6.5 inch - P&A Upgrade |
| Bass Port Rear Speakers | Standard |
| Distortion (THD) | 1 % |
| Amp | Internal-Standard, External-P&A Upgrade |
| Wired Headset | Standard |
| Headset Specifications (if equipped) | 16-64 ohms |
| FM | Standard |
| Weather Band (WB) | Dependent on region |
| MW | Standard |
| LW | Standard |
| MP3-USB Connection | Supported |
| SD Card - via USB Connection | Supported |
| Flash Drive - via USB Connection | Supported |
| CB Presets | 6 |
| AM/MW/LW Presets | 6 |
| FM Presets | 15 |
| iPod Device Presets | 20.0 |
| USB-Storage Device Presets | 20.0 |
| WB Presets | 6 |
| Media Player Device Presets | 20 |
| Global Presets | Selectable, up to 20 presets |
| Favourites | 1 FAV hardkey plus 6 favorites |
| Classic Mode | Selectable |
| Seek/Scan | Standard |
| Software Update via USB interface | Standard |
| USB | USB/MTP/iPod/iPhone |
| Bluetooth | Phone/Media Supported |
