VEHICLE SUMMARY |

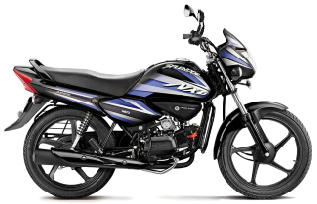

| Name: | Splendor NXG Spoke |
| Type: | Commuter |
| Top Speed: | 97kph |
ENGINE SPECIFICATIONS |
| Displacement: | 97.2cc |
| Engine: | Single Cylinder, 4 Stroke, OHC |
| Maximum Power: | 7.6 Bhp @ 7500 rpm |
| Maximum Torque: | 7.60 Nm @ 6000 rpm |
| Gears: | 4 Speed |
| Clutch: | Multiplate Wet |
| Bore: | 50 |
| Stroke: | 49.5 |
| Cylinder Configuration: | NA |
| Engine Block Material: | NA |
| Chassis Type: | Tubular Double Cradle |
| Cooling Type: | Air Cooling |
| Carburetor: | NA |
DIMENSIONS |
| Length: | 1965.00 mm |
| Width: | 720.00 mm |
| Height: | 1095.00 mm |
|
OTHER SPECIFICATIONS |
| Weight: | 107.00 kg |
| Ground Clearance: | 160.00 mm |
| Fuel Tank: | 10.30 ltrs |
| Wheelbase: | 1230.00 mm |
| Electrical System: | NA |
| Headlamp: | 35W/35W. Halogen Bulb |
| Horn: | NA |
| Wheel Type: | Spoke |
| Wheel Size: | 2.75x18 - 3.00x18 mm |
| Tubeless: |  |
| Colors: | NA |
ACTIVE AND PASSIVE SAFETY |
| Suspension(Front): | Telescopic Hydraulic Shock Absorbers |
| Suspension(Rear): | Swing Arm with Hydraulic Shock Absorbers |
| Brakes: | 130mm Drum |
| Brakes(Rear): | 110mm Drum |
| Stand Alarm: | |
COMFORT AND CONVENIENCE |
| Fuel Guage: | Analogue |
| Self Start: | |
| Tacho Meter: | None |
| Trip Meter: | None |
| Alloys: | |
| Warranty: | NA |
| Speedometer: | Analogue |
| Passenger Footrest: | |
| Passenger Backrest: | |
| Step-up Seat: | |
| Pass-light: | |
| Low Fuel Indicator: | |
| Low Oil Indicator: | |
| Low Battery Indicator: | |
| High Oil Temp. Indicator: | |
| Choked Air Filter Indicator: | |
|
