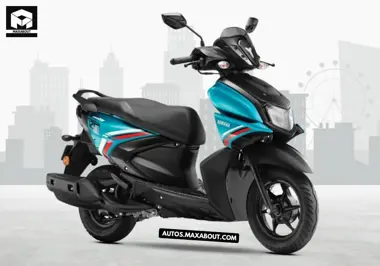

Yamaha Ray ZR





POPULARITY
- This week: 8 views
- All time: 216 views
Ex-Showroom Price
₹ 80,230 - ₹ 89,330
* Delhi. May vary.
Specifications
See full specifications
2-Wheeler Type | Scooter |
Engine cc (Displacement) | 125 cc |
Maximum Power | 8.2 HP @ 6500 rpm |
Maximum Torque | 9.7 Nm @ 5000 rpm |
Number of Cylinders | 1 |
Seat Height | 785 mm |
Ground Clearance | 145 mm |
Kerb Weight | 99 kg |
Fuel Tank Capacity | 5.2 litres |
Yamaha Ray ZR: Pros & Cons
Pros
-
Powerful Engine
(3 of 4 agree)
-
Good Value for Money
(4 of 4 agree)
-
Vast Service Network
(13 of 15 agree)
-
Good Mileage
(4 of 5 agree)
Cons
-
Love It, Hate It Looks
(1 of 3 agree)
Colour Options and Price in India | |
Scooter Variant | 2023 Yamaha Ray ZR 125 Fi (Drum Brake Model) |
Availability Status in India | Available |
2-Wheeler Type | Scooter |
Latest Price in India | 2023 Yamaha Ray ZR 125 price is Rs 80,230 (ex-showroom). |
Fuel Type | Petrol |
Colour Options | Metallic Black, Cyan Blue |
Official Tagline | More Power! More Mileage! |
Official Tagline | The Swag Ride |
On Road Price | 2023 Yamaha Ray ZR 125 on road price is around Rs 93,989. |
MAXABOUT RATING AND OVERVIEW | |
Design | |
Performance | |
Comfort | |
Fuel Economy | |
Features | |
Build Quality | |
Value for Money | |
ENGINE AND GEARBOX | |
Engine Details | 125cc, Air cooled, 4-Stroke, SOHC, 2-Valve |
Fuel System | Fuel Injection |
Cooling | Air Cooling |
Engine cc (Displacement) | 125 cc |
Maximum Power | 8.2 HP @ 6500 rpm |
Maximum Torque | 9.7 Nm @ 5000 rpm |
Number of Cylinders | 1 |
Emission Norms | BS6-Compliant |
Ignition | TCI (Transistor Controlled Ignition) |
Compression Ratio | 10.2:1 |
Bore | 52.4 mm |
Stroke | 57.9 mm |
Final transmission | V-Belt Automatic |
Side Stand Engine Cut Off | |
MILEAGE AND TOP SPEED | |
Mileage | Yamaha Ray ZR 125 mileage is 58 kmpl (approximate). |
Performance | In terms of performance, the 125cc scooter can accelerate from 0-60 kmph in around 9 seconds. |
Top Speed | Yamaha Ray ZR 125 top speed is 90 kmph (approximate, speedo-indicated). |
BRAKES AND TYRES | |
Front Brake | Drum |
Rear Brake | Drum |
Brake System | Unified Braking System |
Front Tyre | 90/90-12 |
Rear Tyre | 110/90-10 |
Front Wheel | 12-inch |
Rear Wheel | 10-inch |
Tubeless Tyres |
KEY FEATURES AND COMPETITORS | |
Braking System | Unified Braking System (UBS) |
Similar Bikes | Honda Activa 125, Suzuki Access 125, TVS NTorq 125, Piaggio Vespa 125 Series, Aprilia SR 125, Hero Maestro Edge 125 |
SUSPENSION AND CHASSIS | |
Front Suspension | Telescopic Fork |
Rear Suspension | Unit Swing |
Frame (Chassis) | Underbone |
DIMENSIONS AND WEIGHT | |
Overall Length | 1880 mm |
Overall Width | 685 mm |
Overall Height | 1190 mm |
Seat Height | 785 mm |
Ground Clearance | 145 mm |
Wheelbase | 1280 mm |
Kerb Weight | 99 kg |
Fuel Tank Capacity | 5.2 litres |
Under-seat Storage | 21 litres |
INSTRUMENT CONSOLE FEATURES | |
Speedometer | Analogue |
Odometer | Analogue |
BATTERY AND LIGHTING | |
Battery Type | Maintenance Free |
Capacity | 5.0 Ah |
Voltage | 12V |
Head Light | 12V, 35/35W |
Tail Light | 12V, 21/5W |
Position Lamp | LED |
Automatic Headlamp On (AHO) | |
COMFORT FEATURES | |
Electric Start | |
Step-up Seat/Split Seat | |
USB Charging | |
Pillion Footrest | |
Pillion Grabrail | |
Engine Stop Switch |
Latest Yamaha Ray ZR News
Recently Added News
Shades
Available Shades in Yamaha Ray ZR to Choose From


Questions and Answers
Most Popular Answers for Yamaha Ray ZR
How many kilometers can Yamaha Ray ZR run safely?
29 December 2022 06:07
Yamaha Ray ZR can easily have day long runs if driven at speeds around 55-60 kmph. It may need breaks every 100 kilometers as the small interval may let the little machine cool down and even provide some amount of relief to the riders back and legs. You can drive the Ray ZR up to the given service interval without any actual harm while high speeds can make the engine more vulnerable for internal damage than moderate speeds for long journeys.
Is there a USB port in Yamaha Ray ZR?
29 December 2022 06:06
Yamaha Ray ZR does not have USB Port for the phone charging purpose. It would have been a good feature, even if provided as an option on the new sporty scooter. The Ray ZR is powered by a 113 cc engine producing 7 BHP and 8.1 Nm of torque. It comes with a drum as well as disc brake option and returns a mileage of 66 kmpl. The scooters starts at INR 52,000.
What is the front disc brake size of Yamaha Ray ZR?
29 December 2022 06:03
The front disc brake size of the new Yamaha Ray ZR is 170 mm. The hydraulic single disc brake is an option and the variant loaded with it comes with a price tag of INR 54,500. The drum brake variant costs just INR 52,000. For this INR 2500 Yamaha also offers a good looking set of alloy wheels, making the deal more valuable for the higher spec variant. It comes with a certified mileage of 66 kmpl and weighs just 105 kg.
Can I fit replace the steel rims with alloy wheels in my Yamaha Ray ZR?
29 December 2022 06:03
Yamaha Ray ZR can be fitted with any 10 inch alloy wheel as Honda Activa's rear alloy is 12 inch and even Suzuki Access's rear alloy wheel is 10 inch. You can even buy the 10 inch alloy wheels from Yamaha itself which are offered on the top spec version. The scooter looks very aggressive and currently retails for INR 52,000 and uses the same 113 cc engine producing 7 BHP and 8.1 Nm of torque. It claims a certified mileage of 66 kmpl.
