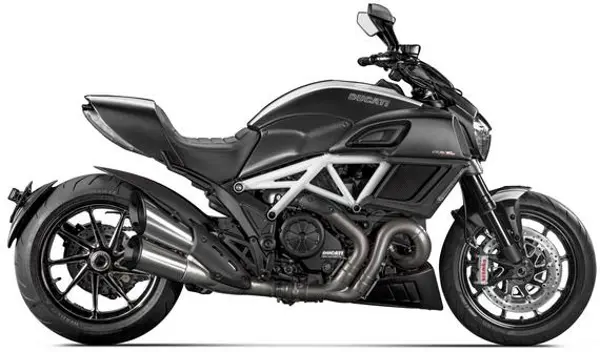

Ducati Diavel Carbon

Ducati Diavel Carbon

 POPULARITY

  • This week: 44 views
  • All time: 207040 views

Ex-Showroom Price

N/A
* Delhi. May vary.

USER OPINION

VEHICLE SUMMARY
Type Naked
Frame Tubular steel Trellis
Exhaust Stainless steel muffler with aluminium tips; catalyzer and 2 lambda probes
Shades Star White & Matt Carbon, Red & Matt Carbon
Warranty 2 years unlimited mileage
ENGINE, POWER & TORQUE
Displacement 1198.4 cc
Maximum Power 159.5 Bhp @ 9250 rpm
Maximum Torque 130.5 Nm @ 8000 rpm
Engine Description Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, Liquid cooled
Cooling Liquid Cooling
Fuel System Electronic fuel injection, elliptical throttle bodies, fully ride-by-wire controlled
Compression Ratio 12.5:1
Bore 106 mm
Stroke 67.9 mm
Number of Cylinders 2
Emission Euro 3
TRANSMISSION
Gearbox 6-speed
Clutch Slipper and self-servo wet multiplate clutch with hydraulic control
Gear Ratios 1st=37/15, 2nd=30/17, 3rd=27/20, 4th=24/22, 5th=23/24, 6th=22/25
Primary drive Straight cut gears, ratio 1.84:1
Final Drive Chain drive; 15 tooth front sprocket, 43 tooth rear sprocket
TECHNICAL HIGHLIGHTS
Ducati Traction Control (DTC)
BRAKES
Front Brake 320 mm semi-floating discs, radially attached Brembo Monobloc 4-piston callipers
Rear Brake 265mm disc, 2-piston floating calliper
Ani-lock Braking System (ABS)
SUSPENSION
Front Suspension Marzocchi fully adjustable 50 mm usd fork with DLC-treatment
Rear Suspension Fully adjustable rear shock with progressive linkage. Remote spring preload adjustment. Single-sided aluminium swingarm
Front Wheel Travel 120 mm
Rear Wheel Travel 120 mm
WHEELS & TYRES
Front Tyre 120/70 ZR 17 Pirelli Diablo Rosso II
Rear Tyre 240/45 ZR17 Pirelli Diablo Rosso II
Front Wheel Marchesini forged and machined 9-spoke 3.50 x 17
Rear Wheel Marchesini forged and machined 9-spoke 8.00 x 17
Wheel Type Alloys
Tubeless Tyres
Alloy Wheels
BATTERY
Battery Type Maintenance Free
DIMENSIONS, WEIGHT & CAPACITIES
Ground Clearance 130 mm
Seat Height 770 mm
Wheelbase 1590 mm
Dry Weight 205 kg
Kerb/Wet Weight 234 kg
Fuel Tank Capacity 17 litres
PERFORMANCE & MILEAGE
0-100 kmph 2.5 secs
INSTRUMENT CONSOLE
Speedometer Digital
Tachometer Digital
Trip Meter Digital
Air Temperature Gauge Digital
Oil Temperature Gauge Digital
Fuel Gauge Digital
COMFORT & CONVENIENCE
Electric Start
Passenger Footrest
Pass Light
Passenger Backrest
Step-up Seat
Riding Modes
OTHER SPECIFICATIONS
Rake 28°
Trail 130 mm
LIGHTING
Head Light Full LED
