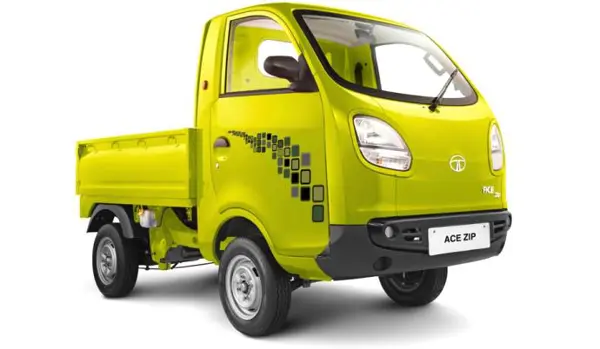

Tata ACE Zip (Diesel)

₹ 2,28,000

* Delhi. May vary.

QUICK FACTS
Engine Displacement	611 cc
Mileage (ARAI)	33 kmpl
Body Type	UV
Official Tagline	Apki Safalta Ka Pahiya
Manufacturer Warranty	1 year / 36,000kms (Whichever earlier)
Summary	TATA Ace Zip Diesel is an affordable option in the small commercial vehicle segment and it also has the reliability stamp from TATA. Priced at a competitive INR 2.28 lakhs, it is powered by a 611cc engine generating 11.14 BHP @ 3000 rpm and a torque of 30.98 Nm @ 1600-1800 rpm. Ace Zip lies in the same segment as that of Mahindra Maxximo.
ENGINE & TRANSMISSION
Engine Description	611cc, Single cylinder, naturally-aspirated, water-cooled engine
Maximum Power	11.14 BHP @ 3000 rpm
Maximum Torque	30.98 NM @ 1600-1800 rpm
Gearbox	TA59, Synchromesh 4 + 1
Fuel Distribution	DI
Maximum Payload	600 kg
Clutch Type	Single plate, dry friction diaphragm
PERFORMANCE & MILEAGE
Mileage (City)	27 kmpl (approx.)
Mileage (Highway)	30 kmpl (approx.)
DIMENSIONS & WEIGHT
Overall Length	3020 mm
Overall Width	1480 mm
Overall Height	1800 mm
Wheelbase	1650 mm
Kerb Weight	685 kg
Gross Vehicle Weight	1285 kg
Turning Radius	3.5 metres
Front Track	1256 mm
Rear Track	1316 mm
Cargo Body Dimensions (LxWxH)	1685 X 1480 X 400 mm
CAPACITY
Fuel Tank Capacity	10 litres
BRAKES & SUSPENSION
Front Brakes	Hydraulic drum
Rear Brakes	Hydraulic drum
Front Suspension	MacPherson strut
Rear Suspension	Coil spring with semi-trailing arm and hydraulic telescopic shock absorbers
WHEELS & TYRES
Front Tyre	145/80 R 12 LT 6PR
Rear Tyre	145/80 R 12 LT 6PR
INTERIOR FEATURES
Glove Box	Lockable glove-box
