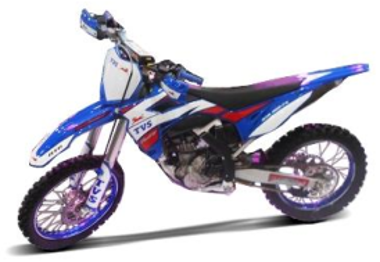

TVS Apache FX
Specifications
See full specifications
2-Wheeler Type | Sports |
Engine cc (Displacement) | 313 cc |
Maximum Power | 33.6 BHP @ 9500 rpm |
Maximum Torque | 28 NM @ 7500 rpm |
Number of Cylinders | 1 |
Number of Gears | 6 |
Colour Options and Price in India | |
2-Wheeler Type | Sports |
Fuel Type | Petrol |
MAXABOUT RATING AND OVERVIEW | |
Vehicle Overview | TVS Apache RTR 300 is an expected model that is said to be based on the Akula 310. It would carry a full faired design and use the 313cc engine from the BMW G310R, producing 33.6 BHP and 28 Nm of torque. It may claim a top speed of around 145 kmph and would use LED front headlight, ABS and all important features in the present market scenario. |
ENGINE AND GEARBOX | |
Engine Details | Water-cooled, single-cylinder 4-stroke engine, four valves, two overhead camshafts, dry sump lubrication |
Engine cc (Displacement) | 313 cc |
Maximum Power | 33.6 BHP @ 9500 rpm |
Maximum Torque | 28 NM @ 7500 rpm |
Number of Cylinders | 1 |
Emission Norms | Closed-loop 3-way catalytic converter, emission standard EU-4 |
Compression Ratio | 10.6 : 1 |
Bore | 80 mm |
Stroke | 62.1 mm |
Engine Management | Electronic fuel injection, BMS-E2 |
Number of Gears | 6 |
Clutch | Multiple-disc clutch in oil bath, mechanically operated |
Gear Ratios | 1st - 3.000, 2nd - 2.063, 3rd - 1.588, 4th - 1.286, 5th - 1.095, 6th - 0.955 |
Final Drive | Endless O-ring chain with shock damping in rear wheel hub |
Primary Gear Ratio | 3.083 |
Gear Pattern | 1-down, 5-up |
BRAKES AND TYRES | |
Front Brake | Single disc, diameter 300 mm, 4-piston fixed caliper, radially bolted |
Rear Brake | Single disc, diameter 240 mm, single-piston floating caliper |
ABS | BMW Motorrad ABS |
Front Tyre | 110/70 R17 |
Rear Tyre | 150/60 R17 |
Front Wheel | 3.0 x 17" |
Rear Wheel | 4.0 x 17" |
Wheel Size | 17-inch |
Wheel Type | Cast aluminium wheels |
Tubeless Tyres | |
Alloy Wheels | |
SUSPENSION AND CHASSIS | |
Front Suspension | Upside down fork , Ø 41 mm |
Rear Suspension | Solid die-cast aluminum swingarm, directly hinged monoshock, adjustable preload |
Frame (Chassis) | Bolted steel frame, drive unit load-bearing, tubular steel rear frame |
Front Wheel Travel | 140 mm |
Rear Wheel Travel | 131 mm |
INSTRUMENT CONSOLE FEATURES | |
Speedometer | Digital |
Tachometer | Digital |
Trip Meter | Digital |
Odometer | Digital |
Engine Temperature Gauge | |
Fuel Consumption Gauge | |
Clock | Digital |
ABS Light | |
RPM/Gear Display | |
Fuel Gauge | Digital |
Low Fuel Warning Light | |
Gear Indicator | |
Service Reminder | |
Low Oil Indicator | |
Low Battery Indicator | |
BATTERY AND LIGHTING | |
Pass Light | |
Battery Type | Maintenance free |
Capacity | 8 Ah |
Voltage | 12 V |
Alternator | 330 W |
Head Light | H4 12V 60/55W |
COMFORT FEATURES | |
Pillion Footrest | |
Electric Start | |
Engine Kill Switch | |
Pillion Grabrail | |
Miscellaneous Information | |
Steering Angle | 64.9° |
Questions and Answers
Most Popular Answers for TVS Apache FX
What is the price of TVS Apache FX in India?
29 December 2022 05:53
TVS Apache FX is a dirt bike which is not currently on sale in India. The bike comes with a 300 cc, liquid cooled engine producing nearly 50 BHP as it gets a power value of 160 BHP/liter. The bike comes with off-road tyres and disc brakes for both the wheels. The specialities of this machine includes a aircraft grade machining on the outer tube for the front suspension with a hydraulic nitrogen gas damped rear suspension. It also gets aluminium wheel rims and comes with a high ground clearance.
