VEHICLE SUMMARY |

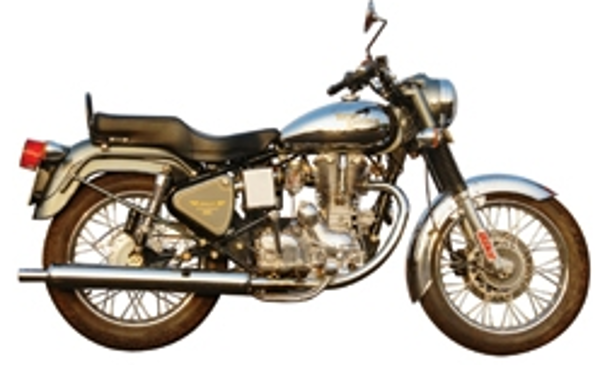

| Name: | Machismo 500 |
| Type: | Commuter |
| Top Speed: | 130kph |
ENGINE SPECIFICATIONS |
| Displacement: | 499cccc |
| Engine: | 499cc |
| Maximum Power: | 17.64kw@5600rpm |
| Maximum Torque: | 40.85nm@3000rpm |
| Gears: | 5 Speed |
| Clutch: | NA |
| Bore: | 84 |
| Stroke: | 90 |
| Cylinder Configuration: | NA |
| Engine Block Material: | NA |
| Chassis Type: | NA |
| Cooling Type: | Air Cooling |
| Carburetor: | NA |
| Motor Power: | 12V |
DIMENSIONS |
| Length: | 2120.00 mm |
| Width: | 750.00 mm |
| Height: | 1080.00 mm |
OTHER SPECIFICATIONS |
| Weight: | 175.00 kg |
| Ground Clearance: | 140.00 mm |
| Fuel Tank: | 14.50 ltrs |
| Wheelbase: | 1370.00 mm |
| Electrical System: | NA |
| Headlamp: | NA |
| Horn: | NA |
| Wheel Size: | 3.25*19 - 4/6 PR, Rear 3.5*19 - 4/6 PR mm |
| Tubeless: | |
| Colors: | NA |
|
ACTIVE AND PASSIVE SAFETY |
| Suspension(Front): | Telescopic, Hydraulic damping |
| Suspension(Rear): | Swing arm with adjustable Gas filled shock absorber |
| Brakes: | Hydraulic Disc brake 280 mm |
| Brakes(Rear): | Internal Expansion (Drum), 6" |
| Stand Alarm: | |
|
COMFORT AND CONVENIENCE |
| Fuel Guage: | Analogue |
| Self Start: | |
| Tacho Meter: | None |
| Trip Meter: | None |
| Alloys: | |
| Warranty: | NA |
| Speedometer: | Analogue |
| Passenger Footrest: | |
| Passenger Backrest: | |
| Step-up Seat: | |
| Pass-light: | |
| Low Fuel Indicator: | |
| Low Oil Indicator: | |
| Low Battery Indicator: | |
| High Oil Temp. Indicator: | |
| Choked Air Filter Indicator: | |
|
