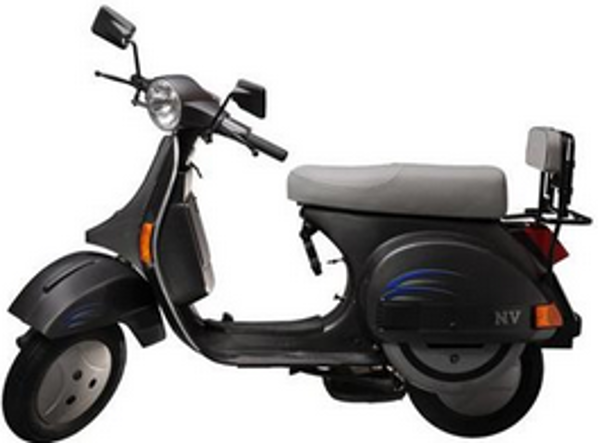

LML NV
Specifications
See full specifications
| 2-Wheeler Type | Scooter |
| Engine cc (Displacement) | 149.56 cc |
| Maximum Power | 8.4 Bhp @ 5500 rpm |
| Maximum Torque | 11 Nm @ 3250 rpm |
| Number of Cylinders | 1 |
| Number of Gears | Mechanical, 4-Speed Constant Mesh |
| Seat Height | 820 mm |
| Ground Clearance | 160 mm |
| Kerb Weight | 104 kg |
| Fuel Tank Capacity | 8 litres |
Colour Options and Price in India | |
| 2-Wheeler Type | Scooter |
| Fuel Type | Petrol Oil Mixture, (2% 2T) Petrol 87 Octance are above |
| Colour Options | Blue Black, MS Grey, Pearl Black, Sparkling Silver |
ENGINE AND GEARBOX | |
| Engine Details | Single Cylinder, 2 Stroke Forced Air Cooled with Rotary Distribution with 5 Transfer Ports and Secondary Air System Induction |
| Cooling | Air Cooling |
| Engine cc (Displacement) | 149.56 cc |
| Maximum Power | 8.4 Bhp @ 5500 rpm |
| Maximum Torque | 11 Nm @ 3250 rpm |
| Number of Cylinders | 1 |
| Ignition | Capacitor Discharge Ignition (CDI) Electronic |
| Compression Ratio | 9.0 + 0.5:1 |
| Bore | 57.8 mm |
| Stroke | 57 mm |
| Spark Plug Model Type | Champion - RN9YC; Mico BOSCH - WR8DC |
| Number of Gears | Mechanical, 4-Speed Constant Mesh |
| Clutch | Multiplate, Oil bath type |
| Gear Ratios | 1st=15.38:1, 2nd=10.46:1, 3rd=7.24:1, 4th=5.39:1 |
BRAKES AND TYRES | |
| Front Brake | Drum mechanical expanding shoe type |
| Rear Brake | Drum mechanical expanding shoe type |
| Front Tyre | 3.5" X 10"; 4Ply Rating; Interchangable |
| Rear Tyre | 3.5" X 10"; 4Ply Rating; Interchangable |
| Tubeless Tyres | |
| Alloy Wheels | |
PERFORMANCE FIGURES | |
| 0-60 kmph | 8 secs |
SUSPENSION AND CHASSIS | |
| Front Suspension | Helical spring & Hydraulic dampers |
| Rear Suspension | Helical spring & Hydraulic dampers |
| Frame (Chassis) | Pressed steel sheet, Monocoque structure |
DIMENSIONS AND WEIGHT | |
| Overall Length | 1760 mm |
| Overall Width | 695 mm |
| Ground Clearance | 160 mm |
| Seat Height | 820 mm |
| Wheelbase | 1235 mm |
| Kerb Weight | 104 kg |
| Fuel Tank Capacity | 8 litres |
| Reserve Fuel Capacity | 1 litres |
| Maximum Carrying Capacity | 270 kg |
INSTRUMENT CONSOLE FEATURES | |
| Speedometer | Analog |
| Fuel Gauge | Analog |
BATTERY AND LIGHTING | |
| Pass Light | |
| Voltage | 12V |
| Head Light | 12V, 35/35 W |
| Tail Light | 12V 5W, 12V 21W |
| Turn Signal Light (Front) | 12V, 21W |
| Turn Signal Light (Rear) | 12V, 21W |
COMFORT FEATURES | |
| Electric Start | |
| Pillion Footrest | |
| Step-up Seat/Split Seat | |
Miscellaneous Information | |
| Steering Column | Pivoted at the front wheel swinging hub |
Questions and Answers
Most Popular Answers for LML NV
I want to purchase kick-start model of LML NV 2-stroke scooter?
29 December 2022 06:01
The LML NV 2-Stroke KS scooter will not be available for sale as a new vehicle. You can only get it from a used vehicle market and if you wish for a new LML, the Star Euro 150 is the best option for INR 54,000. The scooter comes with a 150 cc engine and uses automatic transmission for better ease of use. It even comes with a disc brake version for INR 58,000.
From where can I get LML NV spare parts (original)?
29 December 2022 05:57
The LML spare parts can be bought from its genuine spare parts dealers. They are listed on the company website and you can find your required dealer by entering your state and city name into it.
https://www.lmlglobal.in/LocateDealer
Even you can search for custom parts for your scooter on the other link given below.
https://www.indus-services.co.in/
Ask a Question
Similar Bikes You May Like
Bikes With Features Similar to LML NV
User Reviews for LML NV
Reviews Submitted by Maxabout Community
Such a Amazing Scooter
lokesh kumar | 3 years ago
helpful 0
I have no words to explain that type of amazing scooter. If it continued in market as BS6 i will definitely purchase another one.
Best Features: Performance
Pros: Everything as Suspension, Comfort, Performance Etc.
Cons: Lack of original spare parts in market and discontinued of this product.
Mileage
Looks
Value For Money
Customer Service
Best Vehicle Then Any Motorcycle
Abhijit Baburao Chormule | 3 years ago
helpful 0
Best and only the best style body appearance performance and all aspects low maintenance, low depreciation easily to drive in city town village terrains.
Best Features: Comfort style perfection for all types of journey dickey footrest stepney all better than the best
Pros: Design, Style, Looks
Cons: No cons everything is just perfect
Mileage
Looks
Value For Money
Customer Service
LML NV Comments
DHANRAJ PATANGAY - HYDEABAD (AP) I HAVE PURCHASED IN YR 1996 LML NV, BUT ORIGINAL SPARE PART ARE AVAILABLE NOT IN THE MARKET. VESPA SCOOTY IS MORE EXPENSIVE OTHER SCOOTERS
UN-NECESSARY DISBANNED REASONS ARE NOT KNOWN
